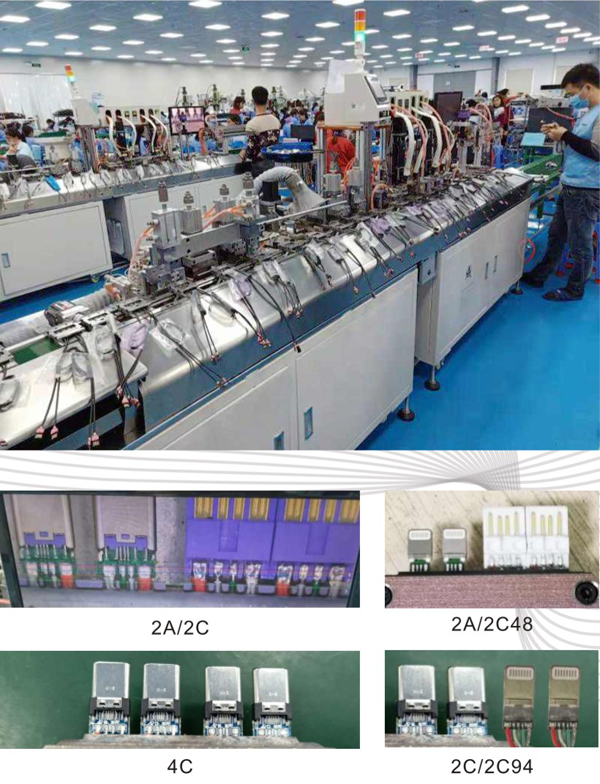

USB Cable Processing Machine (Cutting, Stripping and Soldering)

USB Cable Processing Machine (Cutting, Stripping and Soldering)

This USB cable processing machine supports the process of automatic soldering of USB2.0 cables in addition to the operations of wire cutting and jacket stripping.

Operation Process

Manual wire placing
Core wire straightening and cutting
jacket stripping
Solder flux dipping
Conductor tinning
Conductor cutting
Automatic cable collection

Technical Parameters

Power supply: 220V, 50HZ
Power: 3KW
Air pressure: 0.6-0.8Mpa
Dimension: 6200L*800W * 1680H (mm )
Production output: 1200PCS/H

Get In Touch

XIANGYE provides a broad range of cable processing machinery including cable preparation machine, automatic soldering machine, cable tinplate assembly machine, automatic electrical testing and molding machine, automated barcode scanning system and cable packaging machine. We strive to solve your specific needs by design and custom-manufacture professional automated equipment suitable to your cable applications in various industries. We pride ourselves in our knowledge and expertise in manufacturing cable machinery for a variety of products, such as USB Type C 2.0 cable, Type C 3.0 cable, Type C 3.1 cable, GEN 2 cable, USB Type C 3.1 GEN2 8 coaxial cable, Apple C48 cable, Apple C94 cable, Mini-SAS cable, LVDS cable, SFP cable and FFC cable.
